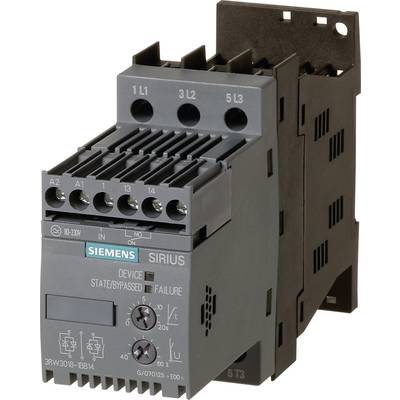

SIEMENS Csendes indító 3RW3018 7,5KW
EAN:
Gyártól szám:
Rendelési szám:
Adatlap (PDF)
3 db
Szám
Összesen (128 339 Ft / Darab)
Ft
Már csak 3 db érhető el
Műszaki adatok
- Védettség: IP20
- Üzemi feszültség
110 - 230 V/AC
- Hatékonysági fázisok
1
- Kivitel
Csavaros csatlakozó
- Gyártói szám
3RW30181BB14
- Névleges áram
17.6 A
- Névleges áramerősség, kerekítve
17.6 A
- Gyártói szám
3RW3018-1BB14
- Méret
(H x Sz x Ma) 150 x 45 x 100 mm
- Mélység
150 mm
- Magasság
100 mm
- Hossz
150 mm
- Szélesség
45 mm
- Névleges feszültség
400 V/AC
- Motorteljesítmény 230 V-nál
4 kW
- Motorteljesítmény 400 V-nál
7.5 kW
- Hőmérséklet (max.)
60 °C
- Hőmérséklet (min.)
-25 °C
Single direction
IP20
Other
17.6 A
4 kW
7.5 kW
40 °C
FALSE
AC/DC
- Termék típus
Lágyindító
Dokumentumok és letöltések
Adatlap
Adatlap 197559 SIEMENS Csendes indító 3RW3018 7,5KW
Kezelési- és biztonsági utasítások
Kezelési- és biztonsági utasítások 197559 SIEMENS Csendes indító 3RW3018 7,5KW
Leírás
SIRIUS soft starter S00 17.6 A, 7.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
