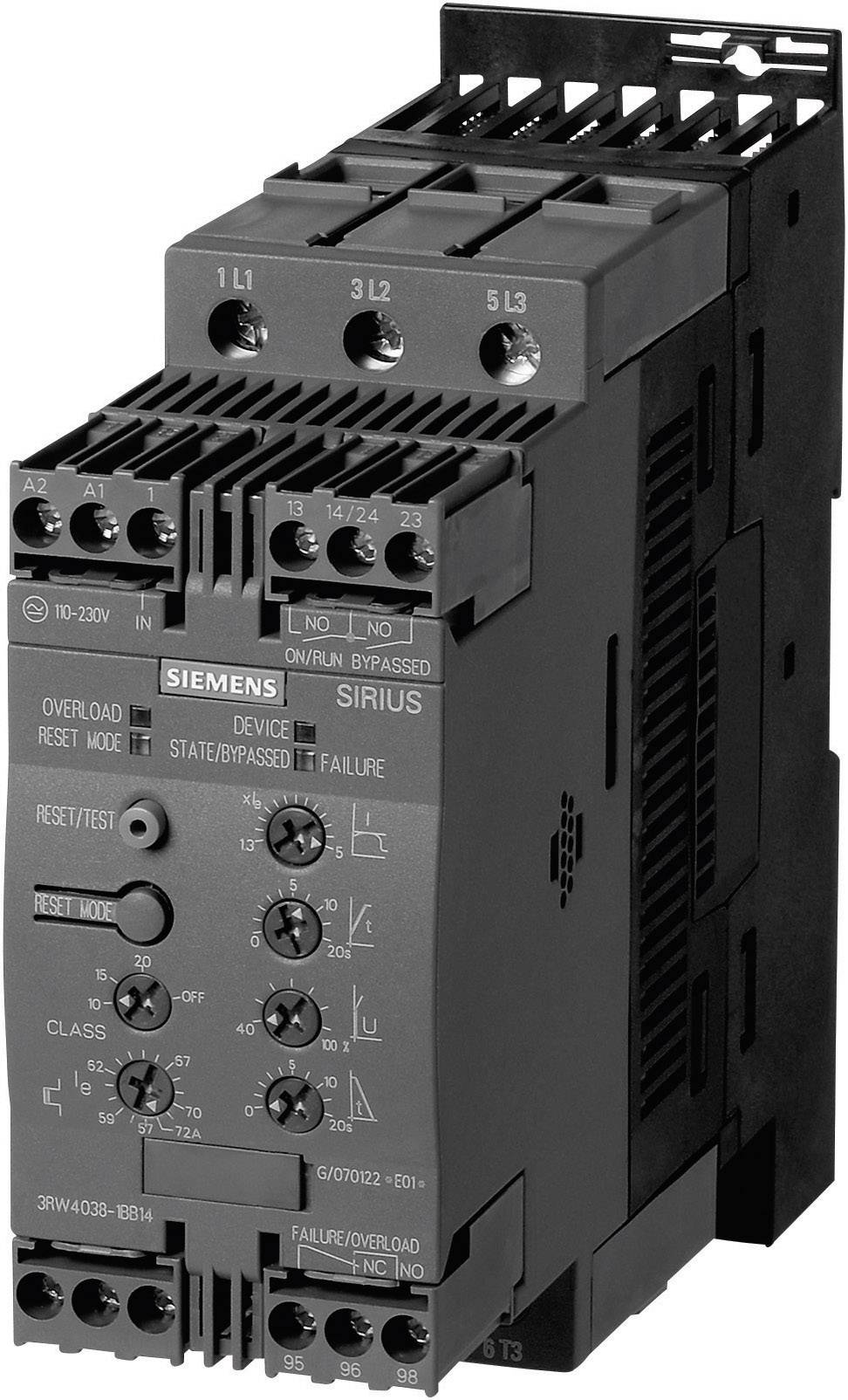

Csendes indító SIRIUS 3RW4036 22 KW
EAN:
Gyártól szám:
Rendelési szám:
Adatlap (PDF)
Helyettesítő termékek megjelenítése
Szám
Összesen (331 488 Ft / Darab)
Ft
Műszaki adatok
- Hatékonysági fázisok
2
- Gyártói szám
3RW40361BB14
- Névleges áram
45 A
- Névleges áramerősség, kerekítve
45 A
- Gyártói szám
3RW4036-1BB14

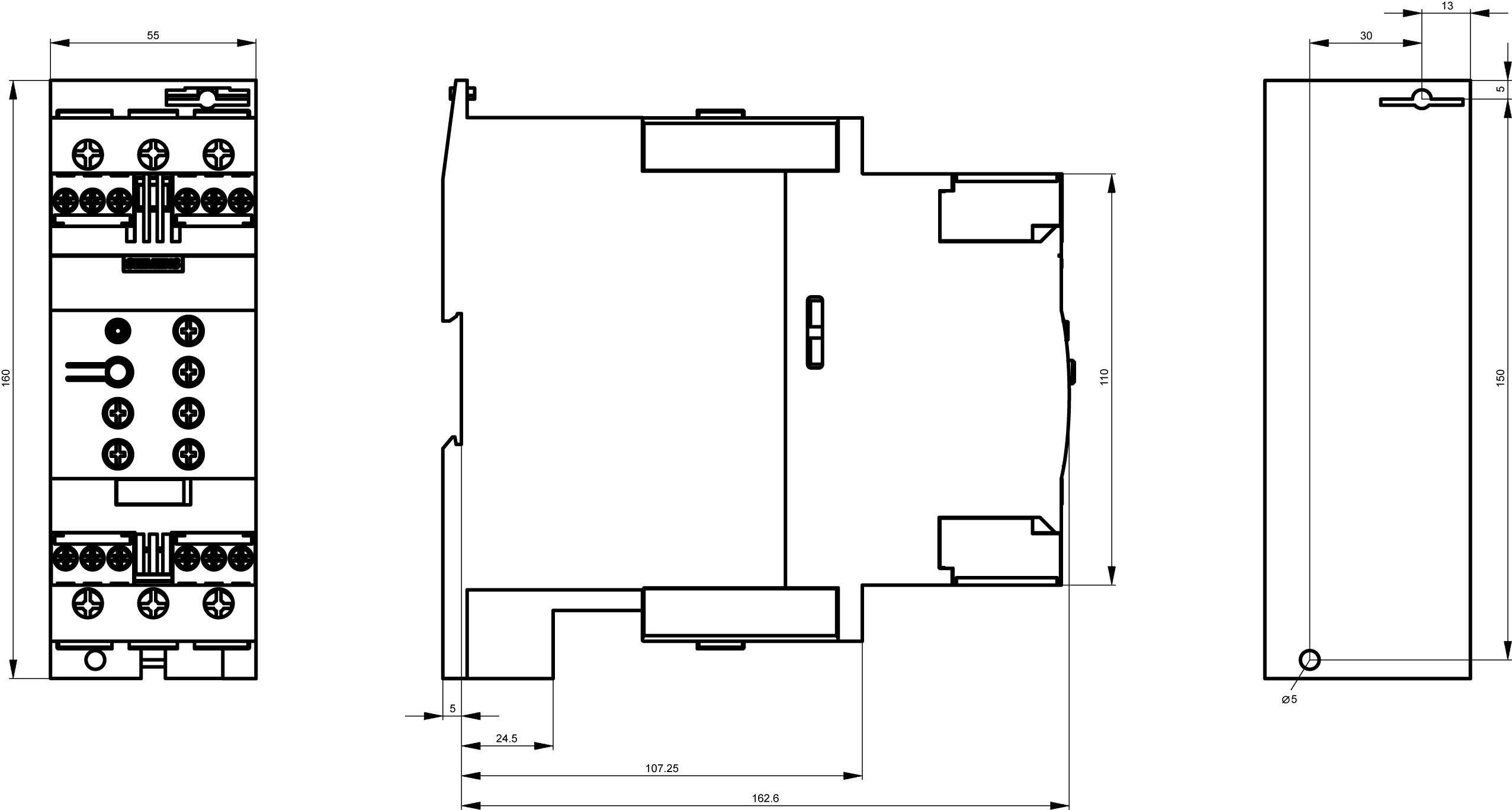

- Méret
(H x Sz x Ma) 165 x 55 x 160 mm
- Magasság
160 mm
- Hossz
165 mm
- Szélesség
55 mm
- Névleges feszültség
400 V/AC
- Motorteljesítmény 230 V-nál
11 kW
- Motorteljesítmény 400 V-nál
22 kW
- Súly
1.31
Single direction
IP00
Other
45 A
11 kW
22 kW
40 °C
TRUE
AC/DC
- Termék típus
Lágyindító
Dokumentumok és letöltések
Adatlap
Adatlap 197085 Csendes indító SIRIUS 3RW4036 22 KW
Kezelési- és biztonsági utasítások
Kezelési- és biztonsági utasítások 197085 Csendes indító SIRIUS 3RW4036 22 KW
Leírás
SIRIUS soft starter S2 45 A, 22 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW40 for standard applications for the soft starting and ramp-down of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

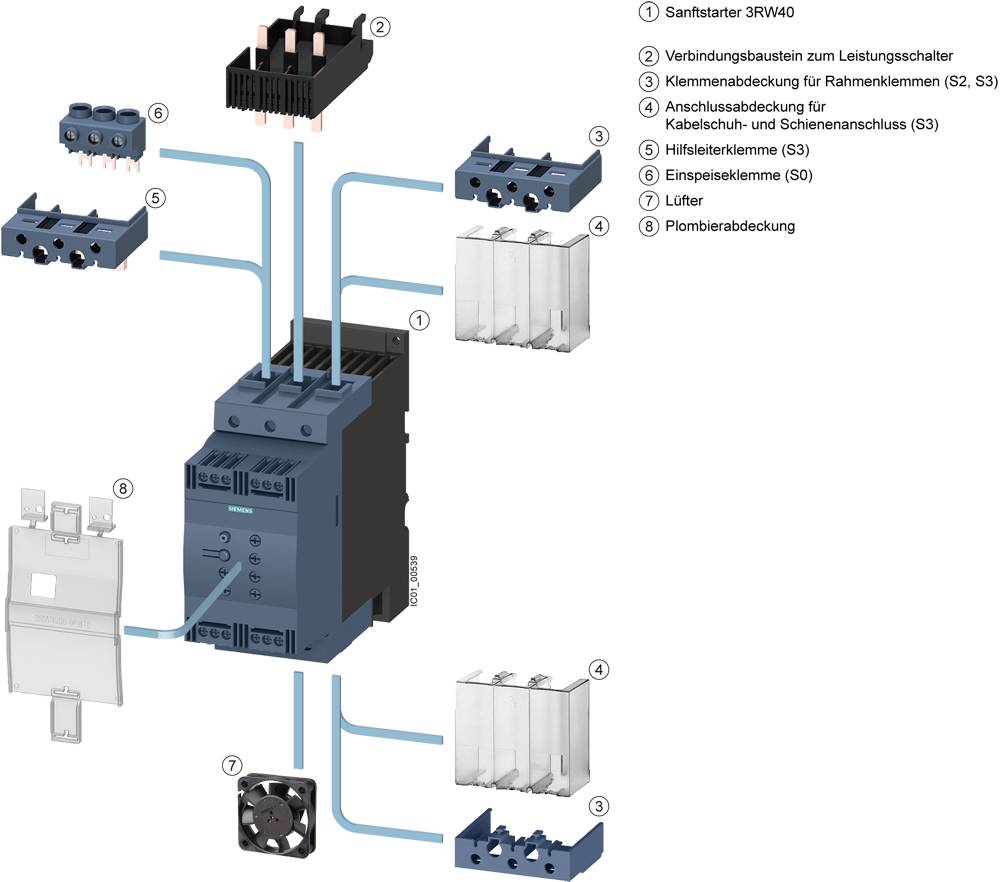

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals. The optional fan permits an even more compact design in the control cabinet.
Simple, efficient and always up to date - SIRIUS modular system.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals. The optional fan permits an even more compact design in the control cabinet.
Simple, efficient and always up to date - SIRIUS modular system.
