Siemens 3RT2036-1AP00 Védő 3 záró 22 kW 230 V/AC 50 A Segédérintkezővel 1 db
EAN:
Gyártól szám:
Rendelési szám:
Termék típus
Védő
Pólusszám
3 pólusú
Névleges feszültség
230 V/AC
Terhelési áram
50 A
Teljesítmény
22 kW
Adatlap (PDF)
8 db
Szám
Összesen (54 323 Ft / Darab)
66 133,86 Ft
-18 %
54 323 Ft
ÁFA nélkül
Már csak 8 db érhető el
Műszaki adatok
- Súly: 989 g
- Teljesítmény veszteség: 4 W
- Termék típus
Védő
- Gyártói szám
3RT2036-1AP00
- Beépítési méret
S2
- Pólusszám
3 pólusú

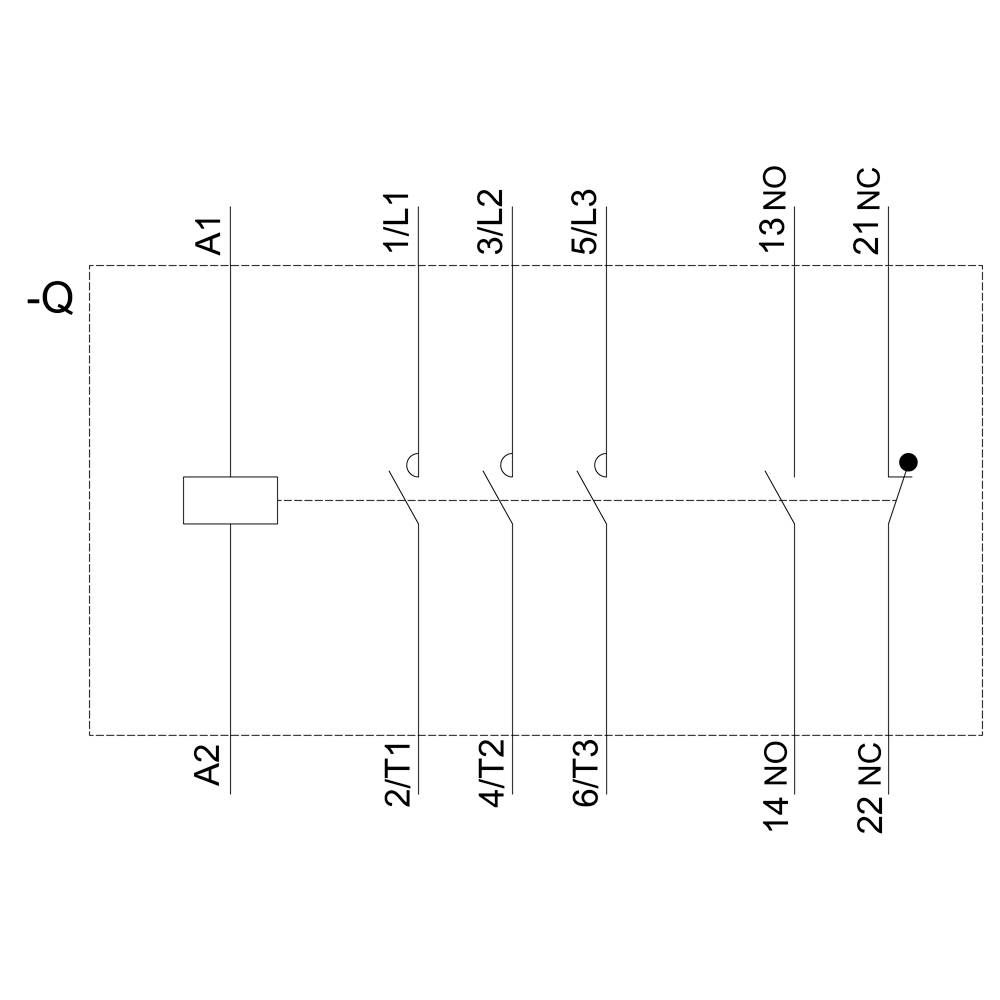

- Érintkező típus
3 záró
- Segédérintkező típus
1 záró
1 nyitó
- Névleges feszültség
230 V/AC
- Kapcsolási feszültség (max.)
400 V/AC
- Tartós áram (max.)
51 A
- Terhelési áram
50 A
22 kW
- Jellemzők
Segédérintkezővel
- Szerelés
Kalapsín
- Csatlakozó
Csavaros kapocs
- Élettartam (mechanikus)
1.0E7
IP20
- Hőmérséklet (min.)
-25 °C
- Hőmérséklet (max.)
+60 °C

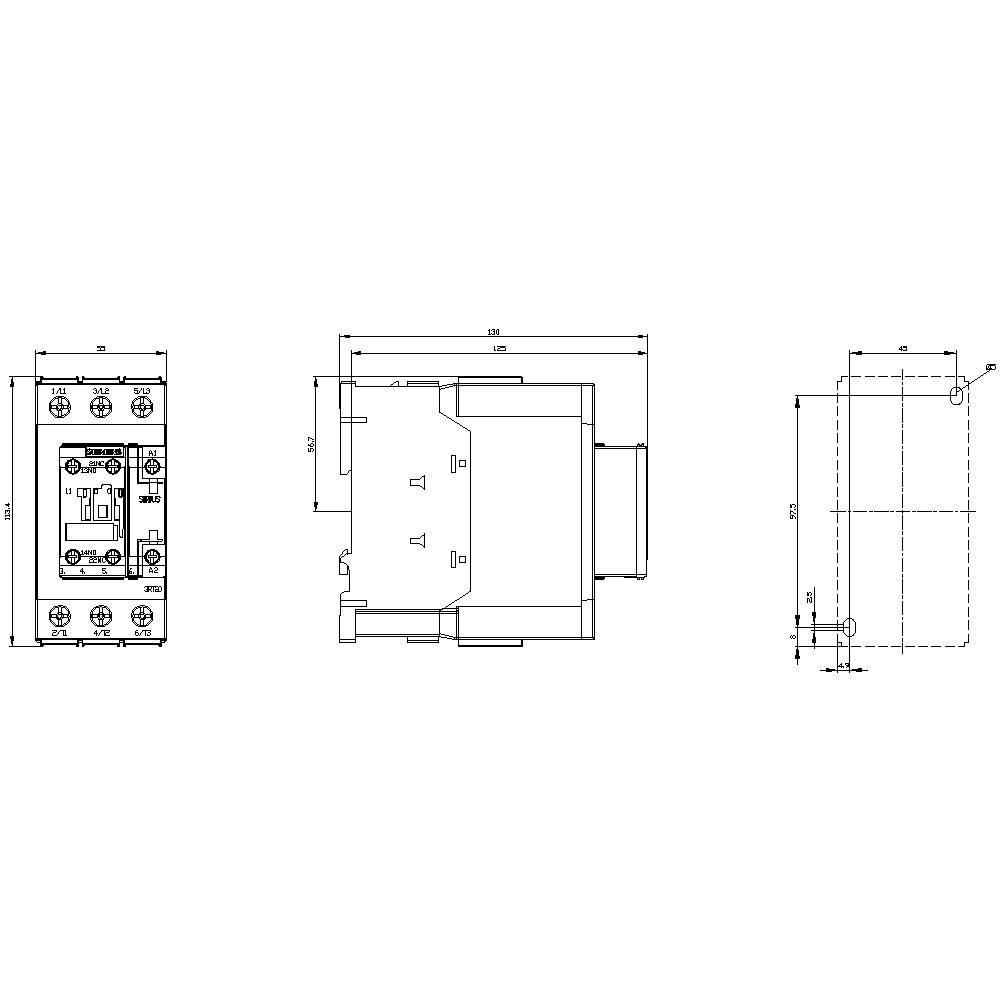

- Szélesség
55 mm
- Magasság
114 mm
- Mélység
130 mm
- Méret
(Sz x Ma x Mé) 55 x 114 x 130 mm
- Tartalom
1 db
- RoHS konform
Igen
- Súly
990 g
TRUE
22 kW
3
1
1
51 A
70 A
230-230 V
Screw connection
AC
41 A
29.42
- UKCA
Igen
Dokumentumok és letöltések
Adatlap
Adatlap 1431164 Siemens 3RT2036-1AP00 Védő 3 záró 22 kW 230 V/AC 50 A Segédérintkezővel 1 db
Kezelési- és biztonsági utasítások
Kezelési- és biztonsági utasítások 1431164 Siemens 3RT2036-1AP00 Védő 3 záró 22 kW 230 V/AC 50 A Segédérintkezővel 1 db
Leírás
power contactor, AC-3 50 A, 22 kW / 400 V 1 NO + 1 NC, 230 V AC, 50 Hz, 3-pole, Size S2, screw terminal Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

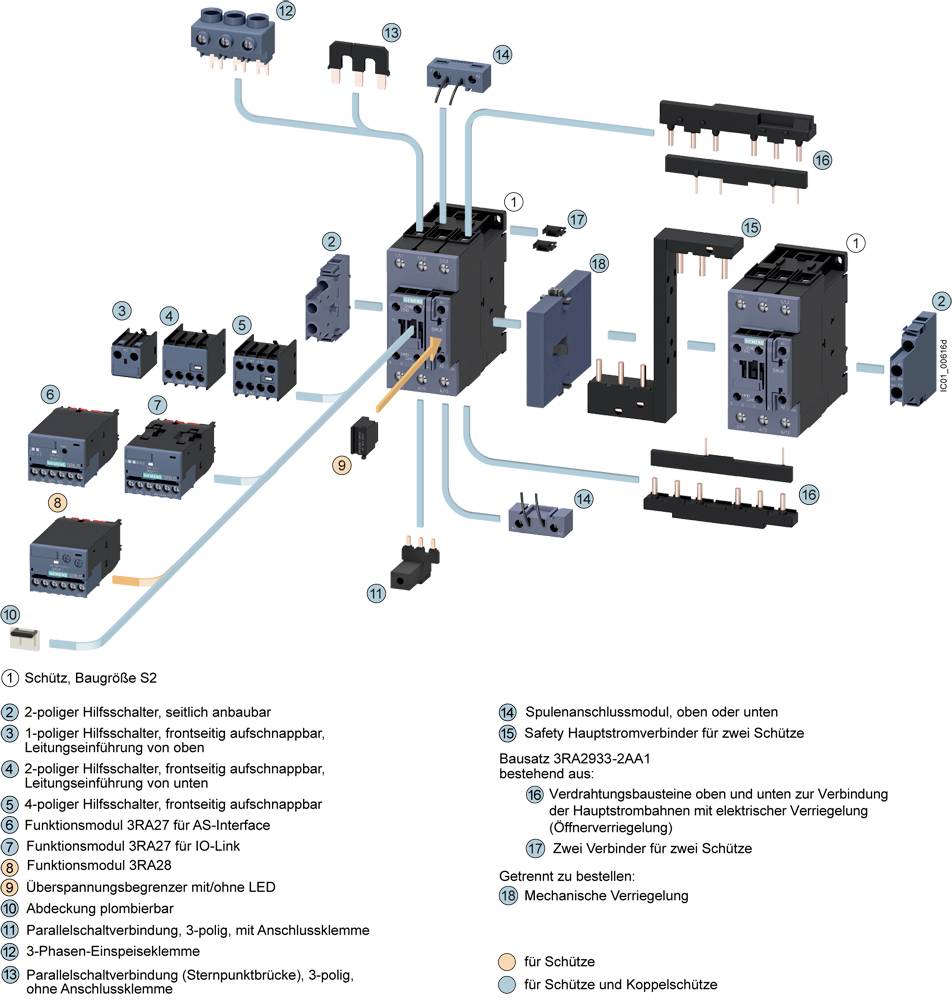

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
