Siemens 3SU10000AB600AA0 3SU1000-0AB60-0AA0 Nyomógomb lapos működtető, Műanyag előlapi gyűrű Gomb Fehér 1 db

1/3
Hasonló kivitel
Adatlap (PDF)
EAN:
Gyártól szám:
Rendelési szám:
Szállítás: 10. 29. [Cs.]

5 db

Szám
Összesen (3290Ft / Darab)
3290Ft
prav.tax.untaxed ÁFÁ-val
+ 1700Ft
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
További szállítási költségek nélkül
Már csak 5 db érhető el
14 napos visszavételi garancia

Műszaki adatok

Termék típus

Nyomógomb

Kapcsoló/nyomógomb jellemzők

lapos működtető

Műanyag előlapi gyűrű

Világítás típus

Nincs

Működtetés módja

Gomb

Gyártói szín

Fehér

Házszín

Fehér

Felirat/motívum

Nincs

Csatlakozó

Külső érintkezőelem

Forma

kerek

Funkciók

Nyomó

Élettartam (mechanikus)

10000000

Beépítési átmérő

22 mm

IP66

IP67

IP69K

Hőmérséklet (min.)

-25 °C

Hőmérséklet (max.)

+70 °C

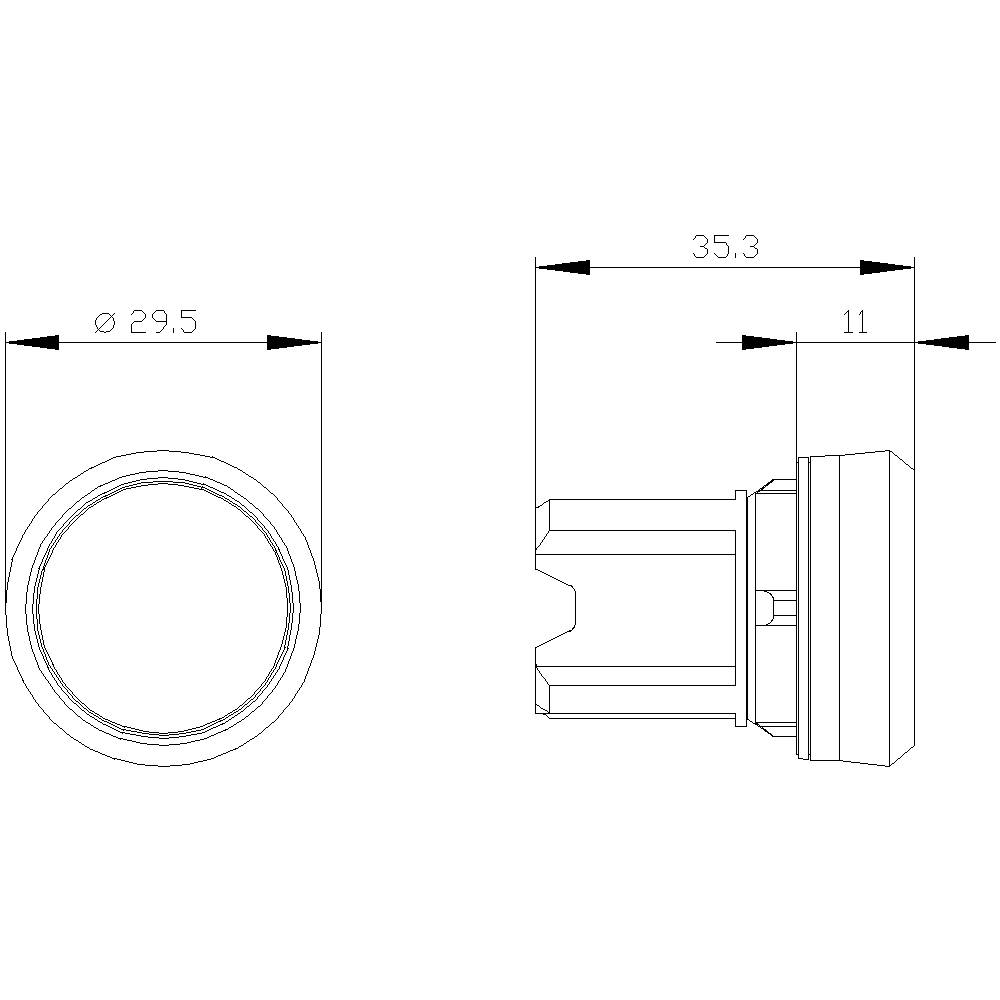

Szélesség

29.5 mm

Magasság

29.5 mm

Átmérő

2.2 cm

Tartalom

1 db

Méret

(Ø x Ma) 2.2 cm x 29.5 mm

RoHS konform

Igen

Súly

19 g

Gyártói szám

3SU1000-0AB60-0AA0

22.3 mm

White

FALSE

1

FALSE

FALSE

Black

Other

FALSE

Plastic

TRUE

Round

FALSE

Other

UKCA

Igen

Dokumentumok és letöltések

Adatlap

Adatlap 1379428 Siemens 3SU10000AB600AA0 3SU1000-0AB60-0AA0 Nyomógomb lapos működtető, Műanyag előlapi gyűrű Gomb Fehér 1 db

Kezelési- és biztonsági utasítások

Kezelési- és biztonsági utasítások 1379428 Siemens 3SU10000AB600AA0 3SU1000-0AB60-0AA0 Nyomógomb lapos működtető, Műanyag előlapi gyűrű Gomb Fehér 1 db

Információ

Információ 1379428 Siemens 3SU10000AB600AA0 3SU1000-0AB60-0AA0 Nyomógomb lapos működtető, Műanyag előlapi gyűrű Gomb Fehér 1 db

Leírás

Pushbutton, 22 mm, round, plastic, white, pushbutton, flat momentary contact type Pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
