Siemens 3SU1001-6AA40-0AA0 Világító jelző lapos Zöld 1 db

1/4
Hasonló kivitel
Adatlap (PDF)
EAN:
Gyártól szám:
Rendelési szám:
Szállítás: 10. 30. [P.]

9 db

Szám
Összesen (2990Ft / Darab)
2990Ft
prav.tax.untaxed ÁFÁ-val
+ 1700Ft
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
További szállítási költségek nélkül
Már csak 9 db érhető el
14 napos visszavételi garancia

Főbb jellemzők

3SU1 jelző

Műszaki adatok

Termék típus

Világító jelző

Kivitel

Fém

Gyártói szín

Zöld

Beépítési átmérő

22 mm

n.rel.

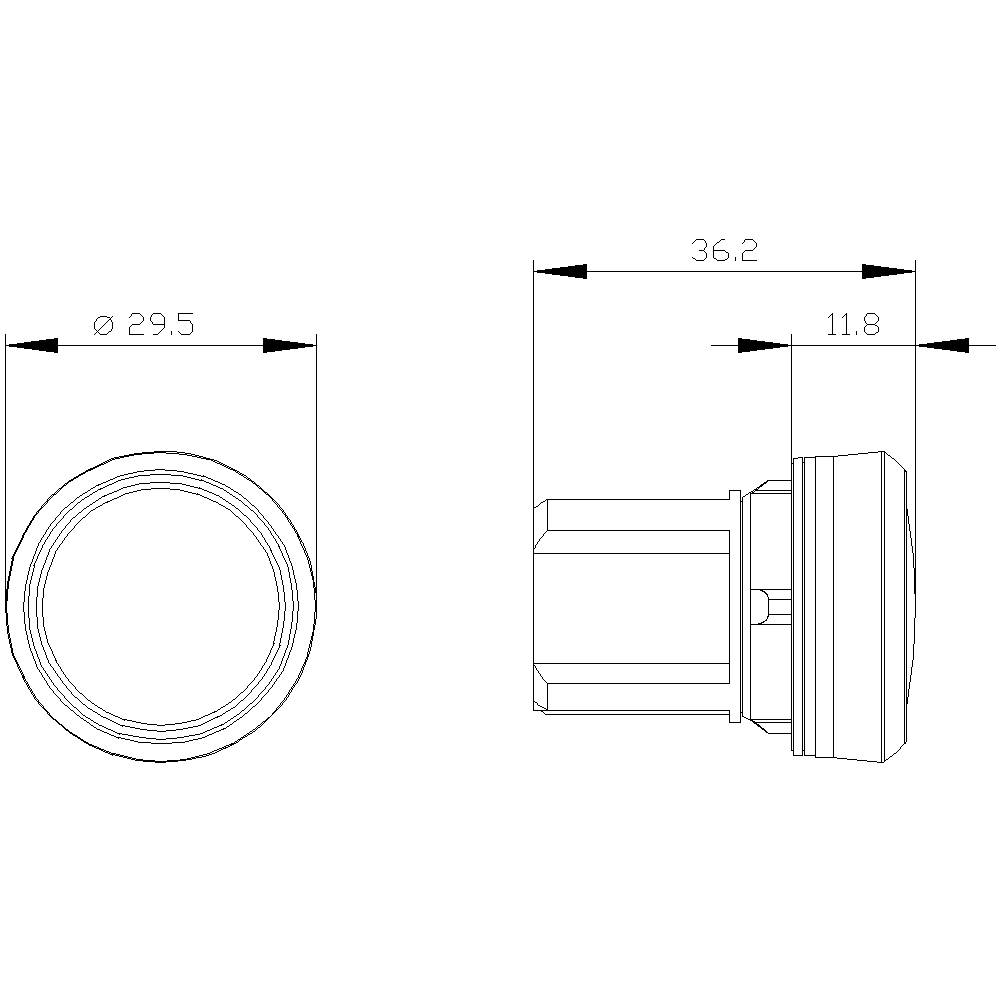

Méret

(Ø x Ma) 29.45 mm x 29.5 mm

Csatlakozó

Külső LED elem

Súly

12.00

Tartalom

1 db

Szélesség

29.5 mm

Magasság

29.5 mm

Átmérő

29.45 mm

RoHS konform

Igen

Kapcsoló/nyomógomb jellemzők

lapos

IP66

IP67

IP69/IP69K

Hőmérséklet (max.)

+70 °C

Hőmérséklet (min.)

-25 °C

Gyártói szám

3SU1001-6AA40-0AA0

22.3 mm

Other

Other

IP67/IP69K

29.5 mm

11.8 mm

Other

FALSE

Round

1

High

UKCA

Igen

Dokumentumok és letöltések

Adatlap

Adatlap 1379577 Siemens 3SU1001-6AA40-0AA0 Világító jelző lapos Zöld 1 db

Kezelési- és biztonsági utasítások

Kezelési- és biztonsági utasítások 1379577 Siemens 3SU1001-6AA40-0AA0 Világító jelző lapos Zöld 1 db

Információ

Információ 1379577 Siemens 3SU1001-6AA40-0AA0 Világító jelző lapos Zöld 1 db

Leírás

Indicator lights, 22 mm, round, plastic, green, lens, smooth Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in three modern design lines of rugged genuine metal and high-grade plastic.An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.Versions available: Several colors, different voltage variants.Note: Single device, please order holders and modules separately.SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
