Siemens 3SU1106-6AA20-1AA0 Világító jelző lapos Piros 230 V/AC 1 db
EAN:
Gyártól szám:
Rendelési szám:
Adatlap (PDF)
1 db
Mennyiség (db)
Megtakarítás
csomagolási ár (ÁFA nélkül)
1
-
12 591 Ft
3
4% = 548Ft
12 043 Ft
A mennyiségi kedvezmények az eladótól függően változhatnak
Az Ön megtakarítása 0Ft
Szám
Összesen (12 591 Ft / Darab)
12 591 Ft
ÁFA nélkül
Már csak 1 db érhető el
Műszaki adatok
- Termék típus
Világító jelző
- Kivitel
Műanyag
- Gyártói szín
Piros
- Üzemi feszültség
230 V/AC

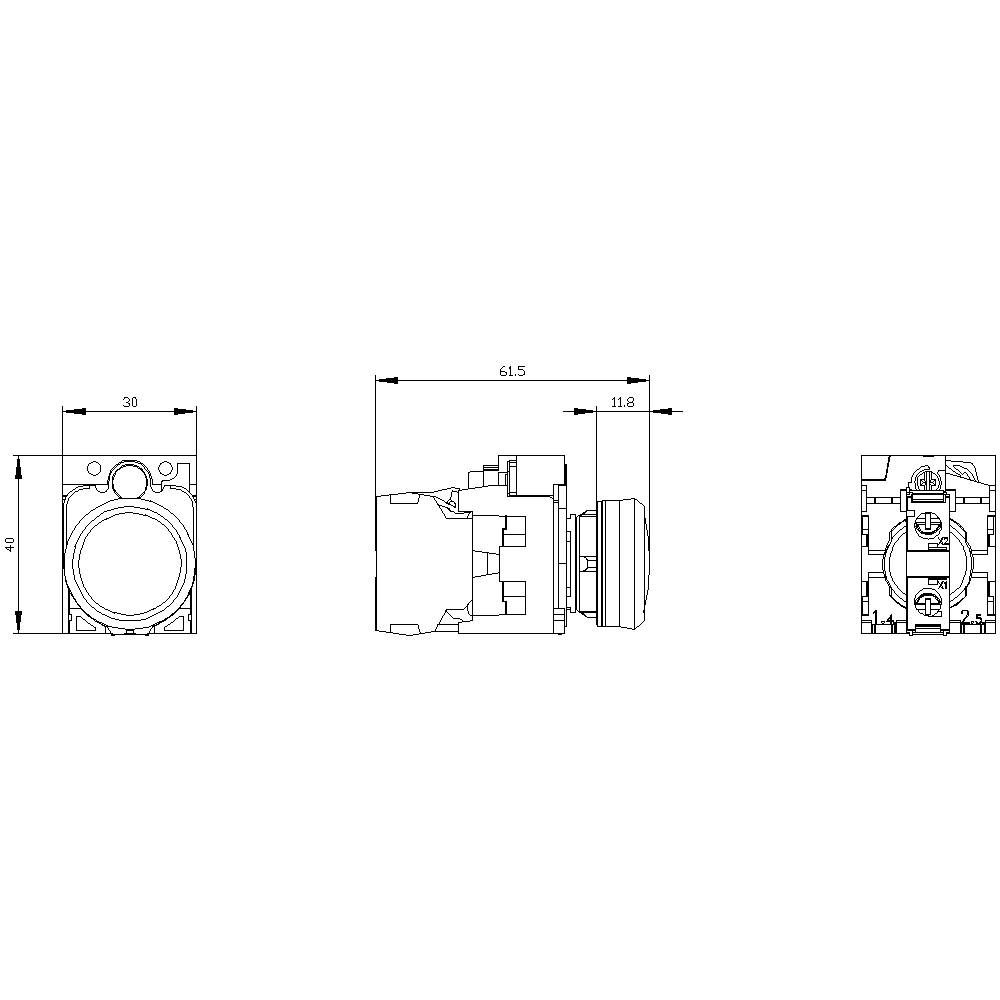

- Beépítési átmérő
22 mm
n.rel.
- Méret
(Ø x Ma) 29.45 mm x 40 mm
- Csatlakozó
Csavaros csatlakozó
- Tartalom
1 db
- Szélesség
30 mm
- Magasság
40 mm
- Átmérő
29.45 mm
- RoHS konform
Igen
- Kapcsoló/nyomógomb jellemzők
lapos
IP66
IP67
IP69/IP69K
- Hőmérséklet (max.)
+70 °C
- Hőmérséklet (min.)
-25 °C
- Gyártói szám
3SU1106-6AA20-1AA0
- Fényforrással
Igen
22.3 mm
AC
1
Other
Screw connection
29.5 mm
11.8 mm
IP67/IP69K
TRUE
Other
FALSE
Other
Other
- UKCA
Igen
Dokumentumok és letöltések
Adatlap
Adatlap 1379631 Siemens 3SU1106-6AA20-1AA0 Világító jelző lapos Piros 230 V/AC 1 db
Kezelési- és biztonsági utasítások
Kezelési- és biztonsági utasítások 1379631 Siemens 3SU1106-6AA20-1AA0 Világító jelző lapos Piros 230 V/AC 1 db
Információ
Információ 1379631 Siemens 3SU1106-6AA20-1AA0 Világító jelző lapos Piros 230 V/AC 1 db
Leírás

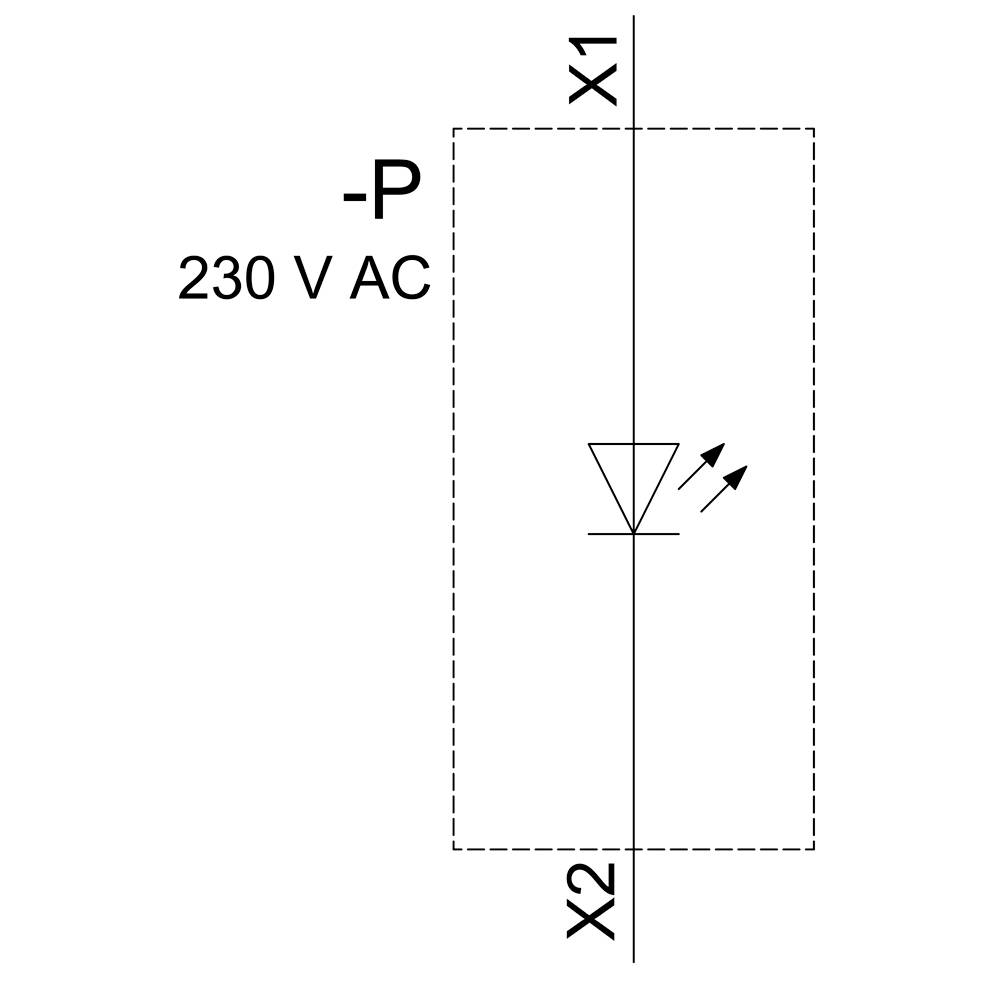

Indicator lights, 22 mm, round, plastic, red, lens, smooth, with holder, LED module, with integrated LED 230 V AC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
