Siemens 3SU1152-6AA40-1AA0 Világító jelző magasfényű Zöld 24 V/AC, 24 V/DC 1 db
EAN:
Gyártól szám:
Rendelési szám:
Adatlap (PDF)
5 db
Szám
Összesen (11 990 Ft / Darab)
11 990 Ft
ÁFÁ-val
Már csak 5 db érhető el
14 napos visszavételi garancia
Műszaki adatok
- Termék típus
Világító jelző
- Kivitel
Fém
- Gyártói szín
Zöld
- Üzemi feszültség
24 V/AC
24 V/DC
- Beépítési átmérő
22 mm
n.rel.

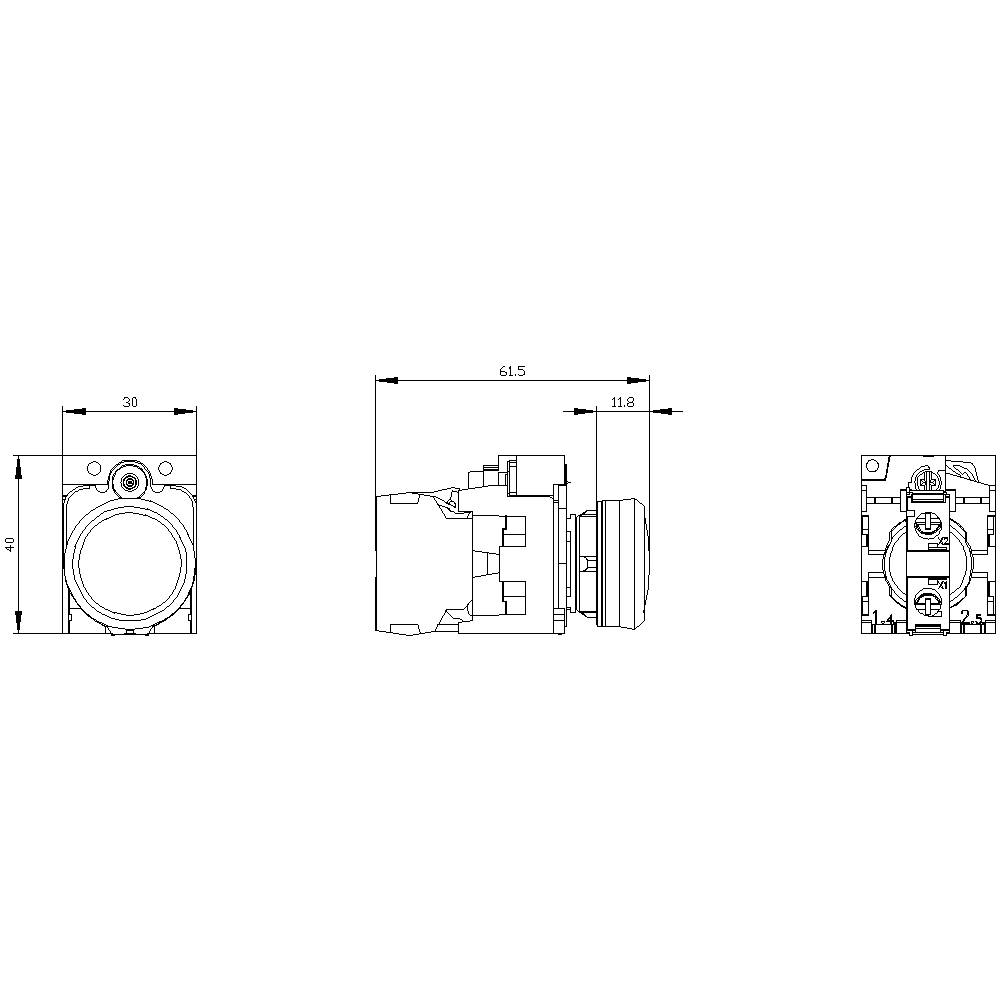

- Méret
(Ø x Ma) 29.45 mm x 40 mm
- Csatlakozó
Csavaros csatlakozó
- Előlap méretek (max.)
22 mm
- Súly
0.0616 kg
- Tartalom
1 db
- Szélesség
30 mm
- Magasság
40 mm
- Átmérő
29.45 mm
- RoHS konform
Igen
- Kapcsoló/nyomógomb jellemzők
magasfényű
IP66
IP67
IP69/IP69K
- Hőmérséklet (max.)
+70 °C
- Hőmérséklet (min.)
-25 °C
- Gyártói szám
3SU1152-6AA40-1AA0
- Fényforrással
Igen
22.3 mm
AC/DC
1
Other
Other
29.5 mm
11.8 mm
IP67/IP69K
TRUE
Other
FALSE
Other
Other
- UKCA
Igen
Dokumentumok és letöltések
Adatlap
Adatlap 1379607 Siemens 3SU1152-6AA40-1AA0 Világító jelző magasfényű Zöld 24 V/AC, 24 V/DC 1 db
Adatlap 1379607 Siemens 3SU1152-6AA40-1AA0 Világító jelző magasfényű Zöld 24 V/AC, 24 V/DC 1 db
Kezelési- és biztonsági utasítások
Kezelési- és biztonsági utasítások 1379607 Siemens 3SU1152-6AA40-1AA0 Világító jelző magasfényű Zöld 24 V/AC, 24 V/DC 1 db
Információ
Információ 1379607 Siemens 3SU1152-6AA40-1AA0 Világító jelző magasfényű Zöld 24 V/AC, 24 V/DC 1 db
Leírás
Indicator lights, 22 mm, round, metal, shiny, green, lens, smooth, with holder, LED module with integrated LED 24 V AC/DC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
