Siemens 8US13134AH03 Device adapter MCCB, 4-pole, 250A for 3VA12, contacting element for the adapter 1 db
EAN:
Gyártól szám:
Rendelési szám:
Tartalom
1 db
Busbar distance
60 mm
Mounting rail armament
None
Max. busbar thickness
10 mm

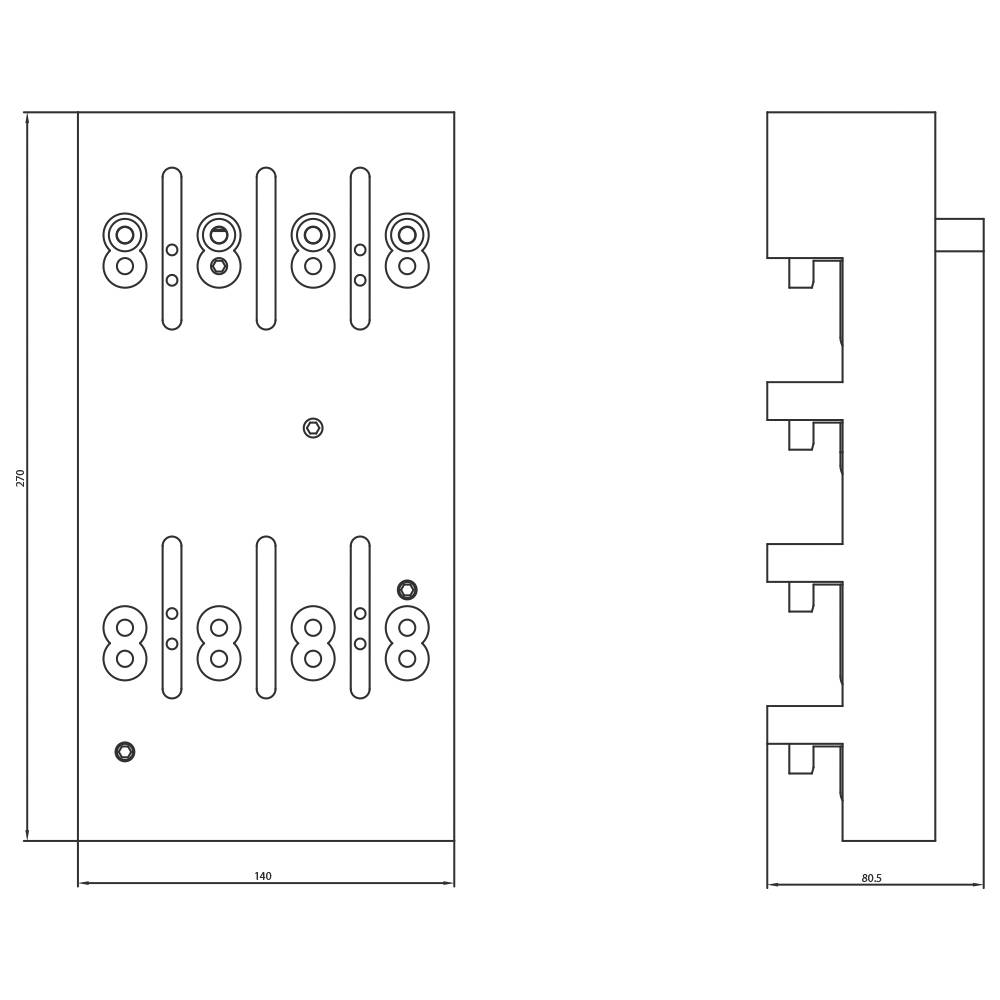

Width of the adaptor
140 mm
Adatlap (PDF)
Szám
Összesen (55 898 Ft / Darab)
55 898 Ft
ÁFA nélkül
14 napos visszavételi garancia
Műszaki adatok
- Tartalom
1 db
60 mm
None
10 mm
140 mm
30.0 mm
Other
5 mm
250 A
- UKCA
nem jellemző
Dokumentumok és letöltések
Adatlap
Adatlap 2878102 Siemens 8US13134AH03 Device adapter MCCB, 4-pole, 250A for 3VA12, contacting element for the adapter 1 db
Kezelési- és biztonsági utasítások
Kezelési- és biztonsági utasítások 2878102 Siemens 8US13134AH03 Device adapter MCCB, 4-pole, 250A for 3VA12, contacting element for the adapter 1 db
Leírás

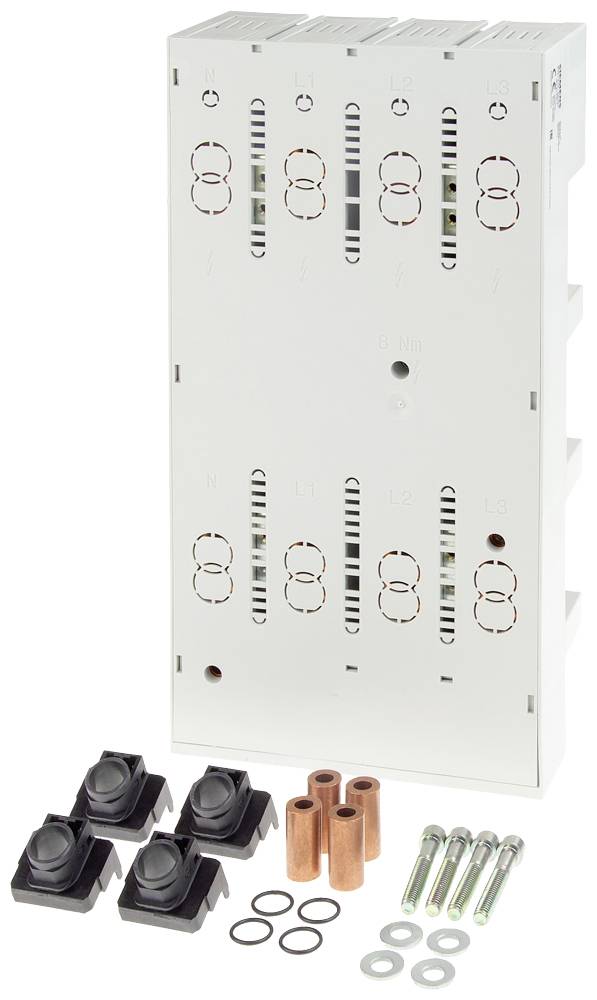

Device adapter MCCB, 4-pole, 250 A for 3VA12 Contacting to the adapter is supplied 8US busbar system for setting up protective devices such as fuse switch disconnectors and circuit breakers - safe, space-saving and clearly laid out. The use of the 8US busbar systems from Siemens gives a number of options for installing rail-adaptable connecting, switching and installation devices. Cost-effective electrotechnical enhancement of modern distribution boards is possible due to their small footprint, compact design and quick assembly contacts. Mounting is on longitudinal stays and the rail gapis 60mm. Key features of the Siemens 8US busbar systems: 1. Mechanical fixing and electrical contacting in a single step. 2. Worldwide approval and therefore worldwide use in mechanical and plant engineering. 3. Easy replacement of individual devices or entire combinations. 4. Time savings and cost reductions in installation with preassembled load feeders. 5. High operational safety with finger-safe adapter and device holder covers. 6. Large range of busbars can be used for easy adjustment to currents of up to 1,600A.
